Use Schema Registry in a hybrid setup

Hybrid setup for Schema Registry with Unified Stream Manager (USM) allows you to achieve centralized governance and seamless schema management across both self-managed Confluent Platform and fully managed Confluent Cloud environments.

How it works

The hybrid setup uses a primary or replica pattern. Confluent Cloud Schema Registry acts as the central, authoritative source of truth for all schemas. Your Confluent Platform act as high-performance replicas that provide fast, local access while staying synchronized with Confluent Cloud.

When you write a new schema, the request goes to your Confluent Platform Schema Registry. This Schema Registry, configured in FORWARD mode, doesn’t register the schema itself. Instead, it transparently forwards the request to Confluent Cloud Schema Registry, which acts as the primary registry for validation and registration. The new schema ID is then returned to your application. This process ensures all schemas are governed centrally in Confluent Cloud.

When you read an existing schema, the request is handled directly and efficiently by your local Confluent Platform Schema Registry. It serves the schema from its local cache, which provides the speed and resilience of Confluent Platform deployment without needing to contact Confluent Cloud for every read.

To keep the registries synchronized, the schema importer on your Confluent Platform pulls schemas from primary Confluent Cloud Schema Registry. This ensures your local cache is always current and has the latest versions available for your Confluent Platform applications.

Key principles

• Confluent Cloud as primary: When you configure a hybrid setup, the Confluent Cloud Schema Registry serves as the primary registry and can serve read and write requests independently. Existing Schema Registry on Confluent Platform become read-only replicas. Any writes requests they receive are transparently forwarded to Confluent Cloud, ensuring no changes or downtime for client applications.
• Seamless and secure integration: The Schema Registry on Confluent Platform securely connects to the Confluent Cloud Schema Registry over private network connections. This private networking ensures that all communication is isolated and secure.
• Schema synchronization and contexts: To prevent schema ID collisions and manage different schema sets, USM uses schema contexts. This allows for flexible management and synchronization of schemas across different domains. You can use contexts to create an exact replica of your entire Confluent Platform Schema Registry or to synchronize specific sets of schemas from multiple environments without conflicts.
• Non-disruptive client experience: Your applications continue to communicate with the Schema Registry endpoint on Confluent Platform without any required changes. The forwarding and migration logic remain completely transparent to your clients.

Governance features

• Unified metadata management: You can view and manage all schemas from a single interface in the Confluent Cloud UI, where you can apply tags, descriptions, and owners.

• Role-based access and audit logs: Each environment maintains its audit logs independently in Confluent Platform and Confluent Cloud, providing transparency and compliance guarantees for all schema actions.

  Important

  Role-Based Access Control (RBAC) and ACLs are not synchronized between environments. Permissions are checked in the environment where the request is processed. For a schema read, the request is handled by your Schema Registry on Confluent Platform. Therefore, only Confluent Platform permissions are validated.

  For a schema write, the request is first sent to your Schema Registry on Confluent Platform and then forwarded to Confluent Cloud Schema Registry. Therefore, permissions are checked at both layers: first Confluent Platform permissions, and then Confluent Cloud permissions.

  You must manage permissions separately for the Confluent Platform and Confluent Cloud environment. A user with access in one environment does not automatically get access in the other.

• Bidirectional schema deletion: The deletion process is transparent across your environments.

  • If an administrator deletes a schema from a Confluent Platform cluster, the delete request is forwarded to Confluent Cloud Schema Registry. The cloud audit log records the action as performed by the service account on behalf of the Confluent Platform administrator.
  • If an administrator deletes a schema directly in Confluent Cloud, Confluent Cloud propagates the deletion to all connected Confluent Platform clusters during their next sync. The Confluent Platform audit log records the action as being performed by the service account on behalf of the Confluent Cloud administrator.

Disaster recovery scenarios

• Multiple replicas: In a disaster recovery architecture, you can configure secondary Schema Registry on Confluent Platform as read-only replicas. In case of service interruption, your clients can fail over to these replicas for continued schema availability.

• Failover flexibility: If Confluent Cloud Schema Registry is unavailable, you can switch Confluent Platform Schema Registry to read-write mode. To keep schemas synchronized after the switch, you must also reconfigure exporters.

  For details on managing disaster recovery, see the Disaster recovery scenarios.

Configuration prerequisites

Before you configure hybrid setup, ensure the following:

• Your Confluent Cloud organization has the Advanced Governance package.
• You have registered at least one Confluent Platform cluster with Confluent Cloud so it is visible in the Confluent Cloud UI.

• Your Schema Registry on Confluent Platform has its mode set to READWRITE at the global level :__GLOBAL: context. Ensure no mode overrides are set at the subject or custom context level. You can remove any specific overrides by using the DELETE mode API against all relevant subjects and custom contexts.
• You can perform this configuration using Confluent for Kubernetes, Ansible Playbooks for Confluent Platform or by making calls directly to the Confluent REST API. The subsequent workflows provide separate instructions for each approach.
• You have the necessary credentials and endpoints for both your Confluent Platform and Confluent Cloud Schema Registry instances. You can obtain the private endpoints by logging into Confluent Cloud Console and navigating to Environment > Schema Registry > Endpoints.
• Create an API key that uses a service account assigned the DataSteward role. This ensures the service account has the permissions that it needs to manage schemas and enforce governance policies across both Confluent Platform and Confluent Cloud environments. For instructions, see Add an API key.

Configuration scenarios

Choose the scenario that matches your environment.

• Scenario 1: Mirror schemas with Confluent Cloud as the primary registry

  Choose this path to ensure your Schema Registry on Confluent Platform environments have exact replicas of the schemas in your Confluent Cloud Schema Registry. This approach is ideal for maintaining identical schema sets across both environments. To avoid schema ID collisions, ensure the Confluent Cloud Schema Registry either has no schemas to start with or already contains the same set of schemas as your Confluent Platform Schema Registry.

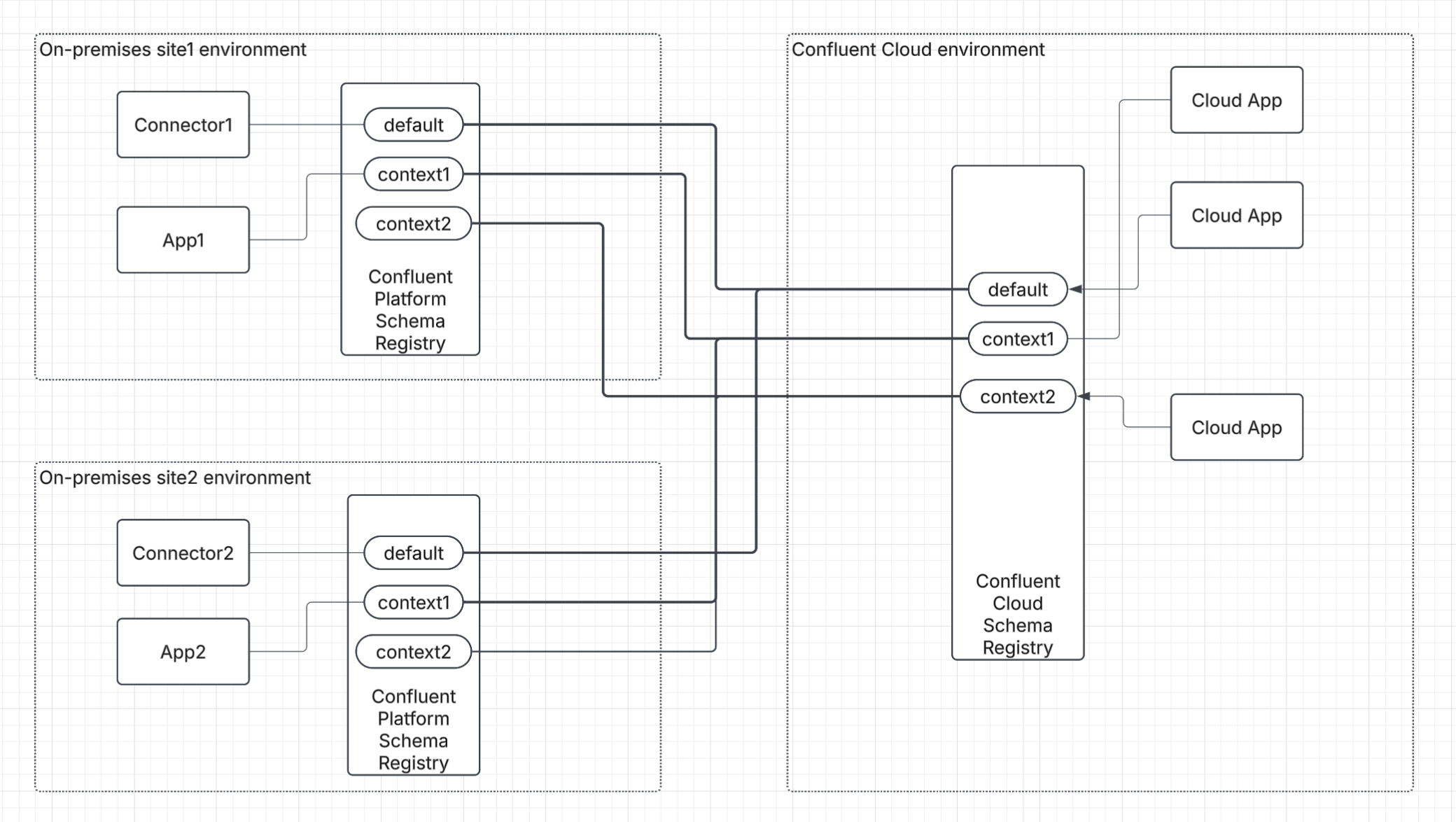

  The following diagram illustrates the schema mirroring configuration.



• Scenario 2: Use distinct schemas and contexts across platforms

  Choose this path if you have multiple, separate Confluent Platform environments and you want to sync them all to the same Confluent Cloud instance. Using a distinct schema context for each Confluent Platform environment prevents schema ID collisions and is ideal for centralizing governance across a multi-cluster estate.

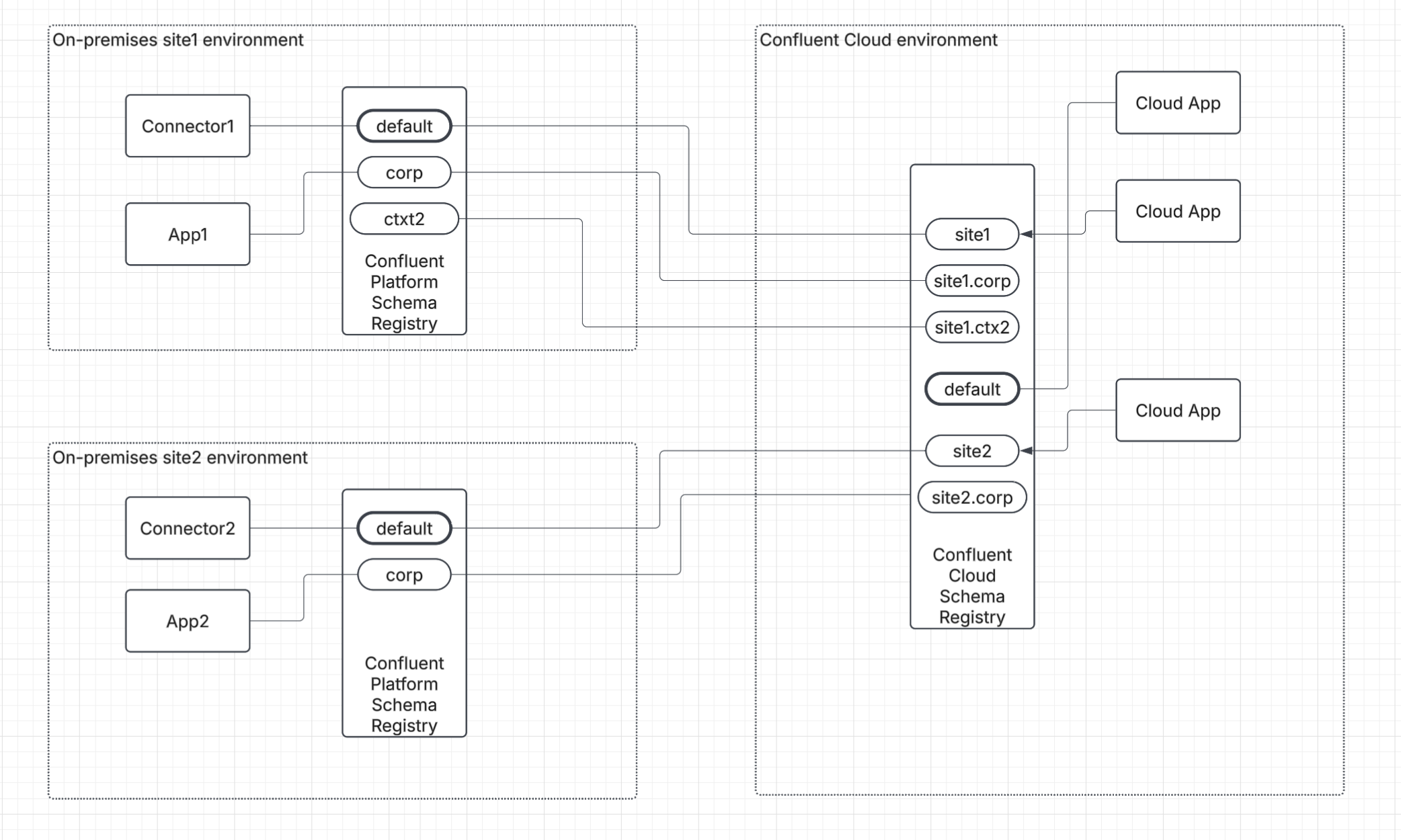

  The following diagram illustrates using distinct contexts to sync multiple Schema Registry instances to Confluent Cloud.



Workflow for scenario 1: Mirror schemas

This section provides workflows to make your Schema Registry on Confluent Platform an identical replica of Confluent Cloud Schema Registry. Follow the instructions for your chosen method.

Confluent for Kubernetes or Confluent AnsibleConfluent REST API

You can automate the schema switchover process by declaratively managing the configuration in your Confluent for Kubernetes or Confluent Ansible. This approach simplifies the setup and ensures consistency across your environments.

For configuration specifications and instructions, see the documentation for your tool:

• Confluent for Kubernetes: Confluent for Kubernetes Schema Registry Switchover.
• Confluent Ansible: Ansible Playbooks for Confluent Platform Schema Registry.

Workflow for scenario 2: Use distinct schemas and contexts to avoid conflicts

This section provides workflows to manage distinct sets of schemas in contexts while centralizing governance. Follow the instructions for your chosen method.

Confluent for Kubernetes or Confluent AnsibleConfluent REST API

You can automate the schema switchover process by declaratively managing the configuration in your Confluent for Kubernetes or Confluent Ansible. This approach simplifies the setup and ensures consistency across your environments.

For configuration specifications and instructions, see the documentation for your tool:

• Confluent for Kubernetes: Confluent for Kubernetes Schema Registry Switchover.
• Confluent Ansible: Ansible Playbooks for Confluent Platform Schema Registry.

Important

If the Confluent Platform instance has subjects in a context other than the default, configure a separate schema exporter and importer for each context and sub-context to synchronize the entire hierarchy. When using schema contexts, use the same context on the destination Confluent Platform Schema Registry for each Confluent Platform Schema Registry being configured.

Configure synchronization with the Confluent REST API

This section provides an end-to-end workflow for migrating schemas between a source Confluent Platform Schema Registry and a destination Confluent Cloud Schema Registry using Confluent REST API calls.

Export schemas from Confluent Platform to Confluent Cloud

This procedure creates an exporter on the source Confluent Platform Schema Registry that connects to and pushes schemas to the destination Confluent Cloud Schema Registry. This iss used for the initial one-time copy of schemas to Confluent Cloud Schema Registry.

Create the exporter configuration

The exporter reads local schemas from your source registry and writes them to the destination registry. The configuration requires the destination registry’s endpoint and API credentials.

schema.registry.url=https://<DESTINATION_SCHEMA_REGISTRY_ENDPOINT>
basic.auth.credentials.source=USER_INFO
basic.auth.user.info=<DEST_API_KEY>:<DEST_API_SECRET>

Replace the placeholder values with your destination registry’s actual endpoint and API credentials.

Create the exporter

Send a POST request to the source Schema Registry {{srEndpoint}} to create the exporter. The configuration differs depending on your goal.

Scenario 1: Mirror all schemas

To create an exact mirror of your Schema Registry on Confluent Platform without using contexts, set contextType to NONE. This is ideal for a full, one-to-one synchronization.

Request

curl --request POST \
  -u <API_KEY>:<API_SECRET> \
  -H "Content-Type: application/vnd.schemaregistry.v1+json" \
  '{
    "name": "usm-exporter-mirror",
    "contextType": "NONE",
    "subjects": [":*:"],
    "config": {
      "schema.registry.url": "CCLOUD SR ENDPOINT",
      "basic.auth.credentials.source": "USER_INFO",
      "basic.auth.user.info": "CCLOUD SR APIKEY:SECRET"
    }
  }'

Response

HTTP/1.1 200 OK
Content-Type: application/vnd.schemaregistry.v1+json

{
"name": "usm-exporter-mirror"
}

Scenario 2: Sync schemas into a specific context

To sync Confluent Platform schemas into a named context in Confluent Cloud, for example, site1, set contextType to CUSTOM and specify the context name.

Request

POST {{srEndpoint}}/exporters


curl --request POST \
  -u <API_KEY>:<API_SECRET> \
  -H "Content-Type: application/vnd.schemaregistry.v1+json" \
  '{
    "name": "usm-exporter-sync",
    "contextType": "CUSTOM",
    "context": "site1",
    "subjects": [":*:"],
    "config": {
      "schema.registry.url": "CCLOUD SR ENDPOINT",
      "basic.auth.credentials.source": "USER_INFO",
      "basic.auth.user.info": "CCLOUD SR APIKEY:SECRET"
    }
  }'

response

 HTTP/1.1 200 OK
Content-Type: application/vnd.schemaregistry.v1+json

{
"name": "usm-exporter-sync"
}

Verify exporter status

To confirm that the exporter is active, send a GET request to check its status on the Confluent Platform Schema Registry.

Request

``GET {{srEndpoint}}/exporters/usm-exporter/status``

Response

{
  "name": "usm-exporter",
  "state": "RUNNING",
  "offset": 9,
  "ts": 1635890864106
}

A state of RUNNING indicates it’s active. The offset shows the number of records processed.

Verify that schemas were exported

To verify that the schemas were successfully exported, list the subjects on the destination Confluent Cloud Schema Registry.

Request

``GET {{cloudSrEndpoint}}/subjects?deleted=true&subjectPrefix=:*:``

The output should list the subjects that were exported from the source registry.

Pause or delete the exporter

After the initial one-time copy of schemas is complete, you must pause and then delete the exporter. This step prevents it from running continuously before you enable the sync-back importer.

You can pause or delete the exporter using the following commands.

To pause the exporter:

PUT {{srEndpoint}}/exporters/usm-exporter/pause

To delete the exporter:

DELETE {{srEndpoint}}/exporters/usm-exporter

Update registry modes

After the initial schema export is complete and the exporter is deleted, you must update the modes for both registries before configuring the importer. This is a critical step makes the Confluent Cloud registry the primary for writes and configures the Confluent Platform registry to forward new schemas to it.

Step 1: Enable writes in Confluent Cloud

Change your Confluent Cloud Schema Registry mode to READWRITE. This allows it to accept new schema registrations forwarded from your Confluent Platform environment.

Command

curl --request PUT \
     -u <CCLOUD_API_KEY>:<CCLOUD_API_SECRET> \
     -H "Content-Type: application/vnd.schemaregistry.v1+json" \
     --data '{"mode": "READWRITE"}' \
     <CCLOUD_SCHEMA_REGISTRY_HOST>/mode

Step 2: Enable forwarding to Confluent Platform

Set your Confluent Platform Schema Registry to FORWARD mode. This tells the registry to transparently send any new schema write requests it receives to the primary Confluent Cloud registry.

Command

curl --request PUT \
     -H "Content-Type: application/vnd.schemaregistry.v1+json" \
     --data '{"mode": "FORWARD"}' \
     <CP_SCHEMA_REGISTRY_HOST>/mode/:.__GLOBAL:

After you complete these steps, you are ready to configure the schema importer for continuous synchronization.

Import schemas to Confluent Cloud Schema Registry

This procedure creates an importer on the Confluent Cloud Schema Registry that connects to and pulls schemas from the Confluent Platform Schema Registry.

Create an importer configuration file using RestAPI

The importer pulls schemas from the source registry into the registry where the importer is configured.

Sample importer configuration file

schema.registry.url=https://<SOURCE_SCHEMA_REGISTRY_ENDPOINT>
basic.auth.credentials.source=USER_INFO
basic.auth.user.info=<SOURCE_API_KEY>:<SOURCE_API_SECRET>

Replace placeholders with source registry details.

Create the importer

Send a POST request to the destination Confluent Cloud Schema Registry {{srEndpoint}} to create the importer.

Request

curl --request POST \
  -u <API_KEY>:<API_SECRET> \
  -H "Content-Type: application/vnd.schemaregistry.v1+json" \
  '{
    "name": "usm-importer",
    "subjects": [":*:"],
    "config": {
      "schema.registry.url": "CCLOUD SR ENDPOINT",
      "basic.auth.credentials.source": "USER_INFO",
      "basic.auth.user.info": "CCLOUD SR APIKEY:SECRET"
    }
  }

Response

 HTTP/1.1 200 OK
Content-Type: application/vnd.schemaregistry.v1+json

{
"name": "usm-importer"
}

Verify the importer status

Check that the importer is running successfully.

Request

``GET {{srEndpoint}}/importers/usm-importer/status``

Response

{
  "name": "usm-importer",
  "state": "RUNNING",
  "ts": 0,
  "retriable": false
}

A state of RUNNING indicates that the importer is working correctly.

Verify the schemas import

To verify that the schemas were successfully imported, list the subjects on the Confluent Cloud Schema Registry.

Request

``GET {{cloudSrEndpoint}}/subjects?deleted=true&subjectPrefix=:*:``

The output should list the subjects that were imported from the source registry.

Pause or delete the importer

Unlike the one-time exporter, the importer must remain RUNNING to continuously synchronize schema updates from Confluent Cloud Schema Registry back to your Confluent Platform cluster. Only pause or delete it if you intend to stop the synchronization.

You can pause or delete the importer using the following commands.

To pause the importer:

PUT {{srEndpoint}}/importers/usm-importer/pause

To delete the importer:

DELETE {{srEndpoint}}/importers/usm-importer

Disaster recovery scenarios

This section describes common Disaster Recovery (DR) scenarios for a hybrid Schema Registry deployment.

DR scenario: Primary or secondary Confluent Platform deployment

Use this scenario when you have one primary Confluent Platform Schema Registry and one or more secondary, read-only Schema Registry instances in different data centers.

Preparing for disaster recovery

1. Migrate your primary Confluent Platform Schema Registry to become a replica of the Confluent Cloud Schema Registry by following the steps in Workflow for scenario 1: Mirror schemas.
2. For each secondary read-only Schema Registry, follow these steps:
   • Stop any existing schema exporter that replicates from your primary Confluent Platform Schema Registry.
   • Configure the secondary Schema Registry in FORWARD mode.
   • Configure the secondary Schema Registry’s schema importer to pull updates directly from the primary Confluent Cloud Schema Registry.

Handling a Confluent Platform service interruption

If your Confluent Platform enviornemnt is unavailable due to data center outage or other reasons, follow these steps:

1. Update your client applications to connect to a secondary Schema Registry in a different data center.
2. After the primary data center recovers, ensure the recovered primary Confluent Platform Schema Registry’s schema importer is fully synchronized with Confluent Cloud.
3. Switch your client applications back to the primary Confluent Platform Schema Registry.

Handling a Confluent Cloud service interruption

If Confluent Cloud environment is unavailable, follow these steps:

1. Switch your primary Confluent Platform Schema Registry from FORWARD mode to READWRITE mode.
2. Configure a schema exporter from your newly promoted primary Confluent Platform Schema Registry to your secondary Confluent Platform Schema Registry instances to maintain replication.
3. When Confluent Cloud becomes available again, revert to the original hybrid configuration to re-establish Confluent Cloud Schema Registry as the primary.

DR scenario: stretched cluster across data centers

In this scenario, you have a single Schema Registry cluster stretched across multiple data centers. The correct steady-state configuration is to connect Schema Registry instances in both your primary and secondary data centers to Confluent Cloud during the initial setup.

This proactive setup ensures that if an outage occurs in your primary data center, the active instances in the secondary data center are already connected. This maintains the hybrid model’s functionality without requiring manual reconfiguration during a failover.
