Migrate between Kafka Clusters using Confluent Cloud Gateway

The client switchover feature of Confluent Cloud Gateway (Confluent Gateway) enables migrations from a source Kafka cluster to a destination Kafka cluster without requiring client-side changes. Confluent Gateway handles the routing and authentication mapping transparently, allowing producers and consumers to continue operating without any changes to their configurations.

You can use client switchover to enable disaster recovery, for example by switching from an unhealthy self-managed cluster to Confluent Cloud.

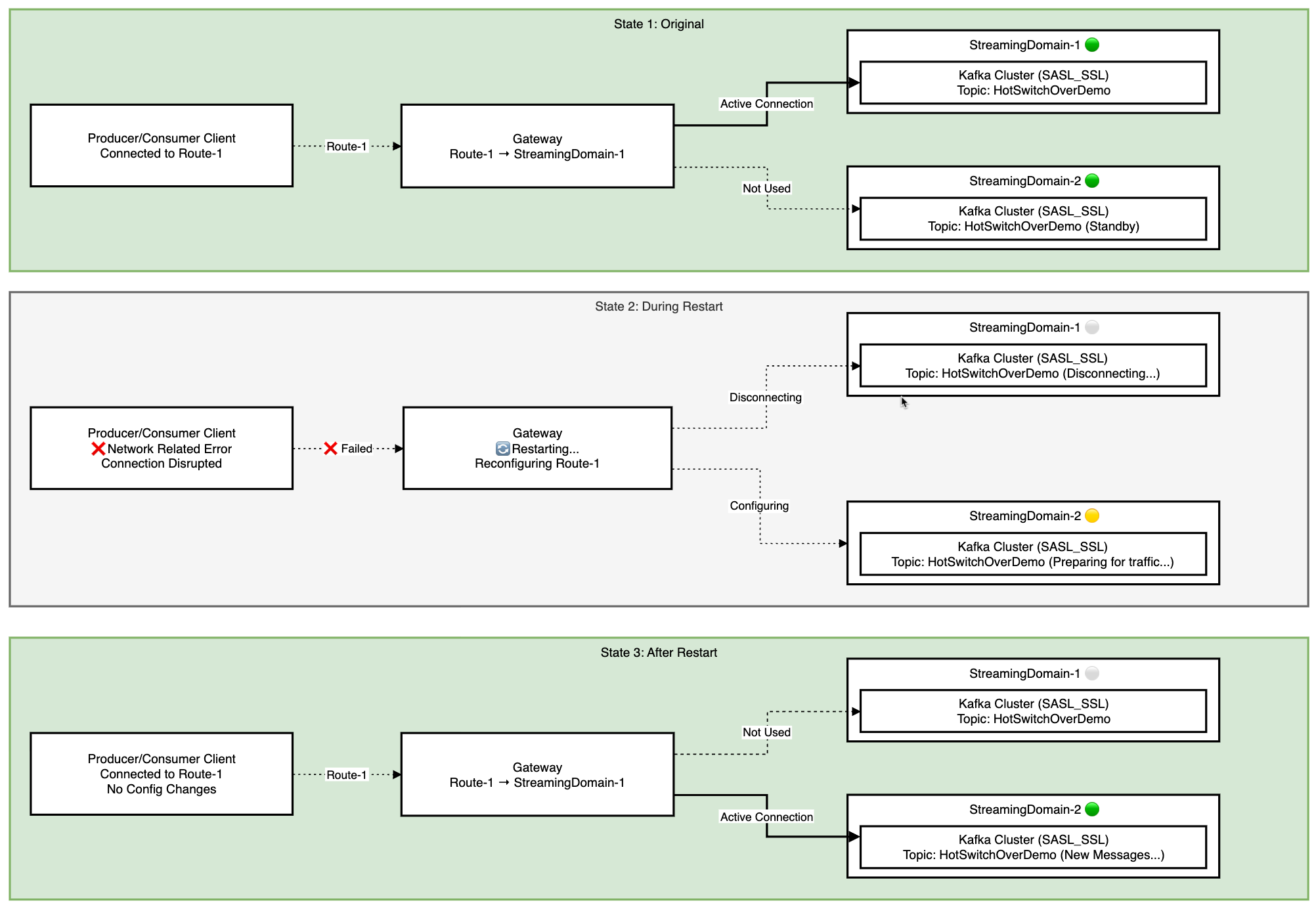

Client switchover architecture

To switch over clients, change the switchover route to point to the destination Kafka cluster by updating the Streaming Domain and corresponding bootstrap server ID in the switchover route.

For a sample configuration, see the Switchover Example in the Gateway image GitHub repository.

Review the requirements and potential implications of client switchover before performing the migration.

Prerequisites

Data replication must be set up outside of Confluent Gateway based on your requirements using tools like Cluster Linking.
The destination Kafka cluster must already have the topics that clients produce to and consume from. Confluent Gateway doesn’t create topics on the destination cluster during switchover, and clients receive an UNKNOWN_TOPIC_OR_PARTITION error if a topic doesn’t exist.
If ordering guarantee and data consistency are required, for example, for Kafka Streams applications, do not use client switchover because it involves more than one Kafka cluster.

Considerations

Client switchover requires restart of the Confluent Gateway service, which impacts:

Consumer: When the Confluent Gateway restarts after a client switchover, it triggers consumer group rebalancing as connections are severed, especially if restart exceeds session.timeout.ms, with default of 45 seconds. During rebalancing, consumers might reprocess messages if offsets weren’t committed before the restart. Applications should handle duplicate message processing or enable auto-commit with appropriate intervals:
- Use isolation.level=read_committed to avoid reading aborted transactions.
- Tune server properties (if required):
  - group.coordinator.rebalance.protocols: Set to eager, cooperative, or consumer.
  - group.coordinator.session.timeout.ms
Producer: The primary risk during Confluent Gateway restart after a client switchover is message duplication when the broker acknowledges a message but the Confluent Gateway fails before relaying the acknowledgment to the producer. This causes producer retries, resulting in duplicate messages.

Use the enable.idempotence=true Kafka configuration to prevent duplicates, or ensure your application can handle them.

Switching to a different physical cluster can also cause a transient OUT_OF_ORDER_SEQUENCE_NUMBER error, because the destination brokers haven’t seen the producer’s ID before. The producer recovers automatically by re-registering with the new brokers.
Transactions: Exactly Once Semantics (EOS) holds in client switchover. In-flight transactions commit if the outage is shorter than transaction.timeout.ms, and otherwise abort. On switchover, any open transaction on the source aborts and cannot be committed on the target. The producer application must reset the transaction state on failure and start a new transaction.
Authentication: Clients that use SASL/OAUTHBEARER identity passthrough send a logical cluster (lkc) extension to identify the target cluster. After a switchover, the active cluster changes. If a client-supplied logical cluster value is not updated, authentication fails. Configure passthroughConfig so that Confluent Gateway sets this extension on the client’s behalf. For more information, see Configure identity passthrough mode and Passthrough clients fail authentication after a failover.

Perform client switchover

To perform client switchover:

Have your Confluent Gateway configured with two Streaming Domains: one for your self-managed source cluster, and one for your Confluent Cloud destination cluster.

For example:

streamingDomains:
  - name: onprem-domain
    type: kafka
    kafkaCluster:
      name: onprem-cluster
      bootstrapServers:
        - id: internal-plaintext-listener
          endpoint: "kafka-1:44444"
  - name: ccloud-domain
    type: kafka
    kafkaCluster:
      name: ccloud-cluster
      bootstrapServers:
        - id: sasl-ssl-listener
          endpoint: "pkc-abc123.us-east-1.aws.confluent.cloud:9092"
          ssl: {}  # see Configure Security for authentication options

Reconfigure the Route to point to the destination Kafka cluster by updating the Streaming Domain and corresponding bootstrap server ID in the Route.

For example, the following configuration points the switchover-route to the onprem-domain streaming domain, and the clients send and receive messages from the source Kafka cluster, onprem-cluster.

Note

When using the host broker identification strategy, Confluent Gateway requires a security.ssl keystore to terminate TLS and read the client’s SNI header. If omitted, Confluent Gateway fails to start with GatewayConfigParseException: SSL keystore must be defined for host identification strategy. For more information, see SSL configuration.

streamingDomains:
  - name: onprem-domain
    type: kafka
    kafkaCluster:
      name: onprem-cluster
      bootstrapServers:
        - id: internal-plaintext-listener
          endpoint: "kafka-1:44444"
  - name: ccloud-domain
    type: kafka
    kafkaCluster:
      name: ccloud-cluster
      bootstrapServers:
        - id: sasl-ssl-listener
          endpoint: "pkc-abc123.us-east-1.aws.confluent.cloud:9092"
          ssl: {}
routes:
  - name: switchover-route
    endpoint: "host.docker.internal:19092"
    brokerIdentificationStrategy:
      type: host
      pattern: "broker-$(nodeId).switchover.example.com:19092"
    streamingDomain:
      name: onprem-domain
      bootstrapServerId: internal-plaintext-listener
    security:
      ssl:
        truststore:
          type: PKCS12
          location: /opt/ssl/client-truststore.p12
          password:
            file: /opt/secrets/client-truststore.password
        keystore:
          type: PKCS12
          location: /opt/ssl/gw-keystore.p12
          password:
            file: /opt/secrets/gw-keystore.password

When you update the switchover-route to point to the ccloud-domain streaming domain, the clients start sending and receiving new messages from the destination Kafka cluster in Confluent Cloud, ccloud-cluster.

streamingDomains:
  - name: onprem-domain
    type: kafka
    kafkaCluster:
      name: onprem-cluster
      bootstrapServers:
        - id: internal-plaintext-listener
          endpoint: "kafka-1:44444"
  - name: ccloud-domain
    type: kafka
    kafkaCluster:
      name: ccloud-cluster
      bootstrapServers:
        - id: sasl-ssl-listener
          endpoint: "pkc-abc123.us-east-1.aws.confluent.cloud:9092"
          ssl: {}
routes:
  - name: switchover-route
    endpoint: "host.docker.internal:19092"
    brokerIdentificationStrategy:
      type: host
      pattern: "broker-$(nodeId).switchover.example.com:19092"
    streamingDomain:
      name: ccloud-domain
      bootstrapServerId: sasl-ssl-listener
    security:
      ssl:
        truststore:
          type: PKCS12
          location: /opt/ssl/client-truststore.p12
          password:
            file: /opt/secrets/client-truststore.password
        keystore:
          type: PKCS12
          location: /opt/ssl/gw-keystore.p12
          password:
            file: /opt/secrets/gw-keystore.password

Stop and restart the Confluent Gateway container.

When the Confluent Gateway container is restarted, the clients continue sending and receiving new messages from the destination Kafka cluster in Confluent Cloud.

No changes are required on the producer or consumer side.
